Quartz Crystal Unit TC-26
  • kHz Range Crystal Unit
  • Cylinder Metal Case (6.0 x 2.0) mm
  • Available in many standard and special frequencies
  • Applications for Clock and Microcomputer
  • RoHS conform;   Lead-free product

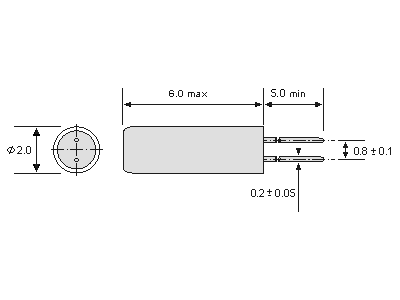

 External Dimensions

 Soldering Conditions
Specifications
Holder Type: TC-26
Frequency Range: 25.000 kHz to 200 kHz
Frequency Stability at 25°C: ±5, 20, 50, 100ppm
Temperature Stability: ±10 to  ±30 ppm   @ -10°C to +60°C
±10 to  ±30 ppm   @ -20°C to +70°C
±15 to  ±50 ppm   @ -40°C to +85°C
Storage Temperature: -40°C to +85°C
Drive Level: 1.0 µW max.
Load Capacitance (CL): 6pF to infinity
Shunt Capacitance (C0): < 2pF
Equivalent Series Resistance: 70 kOhm max.
Aging: < ±5 ppm max./year
