Quartz Crystal Unit   CM4115-2pad SMD in ceramic case (4.1 x 1.5 x 0.8) mm on Tape & Reel RoHS conform;   Lead-free product

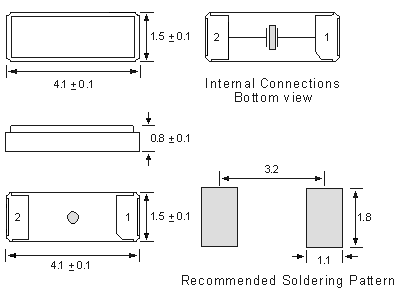

External Dimensions  Soldering Conditions

Specifications Holder Type: CM4115-2pad Frequency Range: 32.768 kHz Frequency Stability at 25°C: ±20 ppm Temperature Stability: ±20 ppm   @ -40°C to +85°C Storage Temperature: -55°C  to  +125°C Drive Level: 0.1µW max. Load Capacitance (CL): 9pF,  12.5pF Shunt Capacitance (C0): < 1pF typ. Equivalent Series Resistance: R = 70 kOhm  max. Aging: < ±3ppm max. / year (max.)
