| Specifications - Product No. G025000000DO3UPNBDPA |
| Holder Type: |

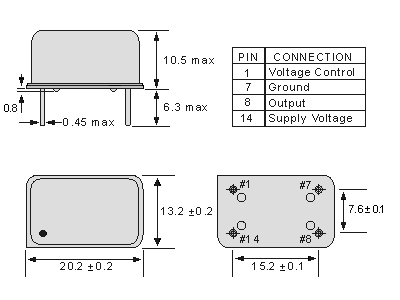

OCXO-14T3.3 3.3V (Voltage code is " 3.3 " ) |
| Supply Voltage range: |
+3.3V ±0.15V |
| Frequency: |
25.000000 MHz |
| Initial Calibration Tolerance: |
±0.5ppm (max.), Vcon = +1.65V |
| Frequency Stability (FS): |
|
| (FS) Operating Temperature Range: |
+2°C to +35°C , ± 0.1ppm |
| (FS) Voltage Change: |
(± 0.15V) < ± 0.1ppm |
| (FS) Warm up time (+25°C): |
5 minutes (max.) |
| (FS) Aging: |
±0.7 ppm first year, < 4.0ppm over 10 years |
| (FS) Load Change: |
? ± 0.01ppm, for ± 5% load condition change |
| Voltage Control on pin 1 (EFC): |
Electronic Frequency Tuning
|
| (EFC) Freq. Deviation Range: |
± 4.0ppm (min.), Reterence to fo at +25°C |
| (EFC) Control Voltage Range: |
(+3.3V) 0.0 to 3.3V |
| (EFC) Transfer Function: |
Positive: Increasing control voltage increases output frequency |
| (EFC) Input Impedance: |
47 k Ohm (min.) |
| (EFC) Linearity: |
± 10 % (max.) |
| Power Dissipation (at 25°C): |
steady-state : 1.5 W (max.) , turn-on: 2.5W (max.) |
| Output: |
Load (Fan out) : 10LS or 47pF
Output Logic: High (Voh) +2.8V (min), Low (Vol) +0.4V (max.)
Duty Cycle (at 50% Vcc) : 50% ± 10%
Rice and Fall Time (20%to 80%) : 7ns (max.) (20% to 80% of waveform) |
| Output Phase Noise (10.0 MHz): |
-80dBc/Hz @ 1Hz, -110dBc/Hz @ 10Hz, -135dBc/Hz @ 100Hz,
-145dBc/Hz @ 1kHz, -150dBc/Hz @ 10kHz |
