| Specifications - Product No. G025000000KISUPC43AB |
| Holder Type: |

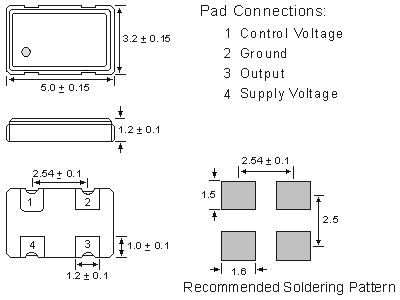

VCXO5032T1.8-4pad 1.8V (Voltage code is "1.8" ) |
| Frequency: |
25.000000 MHz |
| Initial Freq. Accuracy (at 25 °C): |
To tune to the nominal frequency with Vc = 1.25V ±0.2V |
| Freq. Stability o.Operating Temp. Range: |
± 25.0 ppm |
| Operating Temperature Range: |
± 25.0 ppm over -40°C to +85°C (incusive of 25°C tolerance,
± 10% input voltage variation, load change, aging, shock and vibration ) |
| Frequency Deviation: |
±100ppm |
| Power Supply Voltage (Vdd): |
+1.8V DC ± 10% |
| Maximum Supply Current: |
12.0 mA |
| Output Load CL: |
CMOS 15 pF |
| Output "1" Level (V0H): |
2.25V (min.) CMOS |
| Output "0" Level (V0L): |
0.25V (max.) CMOS |
| Output Symmetry (Duty Cycle): |
45/55% |
| Voltage Control: |
0.9V DC Center / 0.00V to 1.8V Range |
| Linearity: |
6% typical; 10% max. |
| Rise/Fall Time: |
6ns (max.) 4ns (typ.) Measured between 0.4V and 2.4V |
| Integrated Phase Jitter: |
1 ps max. (12 kHz to 20 MHz) |
| Phase Noise (27MHz at 3.3V): |
-75dBc/Hz at 10Hz offset -145dBc/Hz at 10kHz offset
-104dBc/Hz at 100Hz offset -152dBc/Hz at 100kHz offset
-132dBc/Hz at 1kHz offset -150dBc/Hz at 1MHz offset |
| Start Up Time: |
10 ms (max.), 5ms (typ.) |
| Aging: |
±3 ppm per year (max.) |
| Reflow Condition: |
10 sec. max. at 260°C |
