| Specifications |

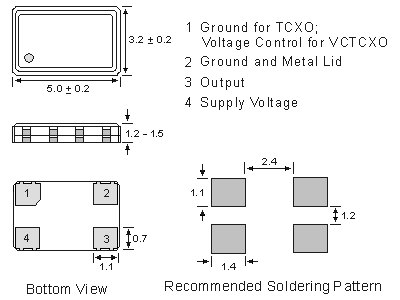

| Holder Type: |
VC-TCXO5032TB3.0 3.0V (Voltage code is " 3.0 " ) |
| Frequency Range: |
1.00 MHz to 200.0 MHz |
| Input Voltage: |
+ 3.3Vdd ± 5% |
| Frequency Stability: |
±0.5ppm to ±3.0ppm |
| Freq. Stability vs Temperature: |
0° to 50°C (±0.5ppm) to -40 to +85°C ( ±1.0 to ± 3.0ppm) |
| Freq. Stability vs Aging: |
± 1.0 ppm, first year at 25°C |
| Freq. Stability vs Voltage Change: |
± 0.3 ppm, for a ± 5% input voltage change |
| Freq. Stability vs Load Change: |
± 0.3 ppm, for a ± 10% load condition change |
| Current Consumption: |
8.0 mA (25MHz at +25°C); 20mA max(200MHz at +25°C) |
| Output Load: |
15pF |
| Output Logic Levels: |
Logic High "1" :90% Vdd min.
Logic Low "1" :10% Vdd min. |
| Pin 1 Options VCTCXO only: |
Control Voltage: Standard +1.5V ± 1.0V for all input voltages.
Slope Polarity: Positive slope. Positive voltage for positive frequency shift.
Input Impedance: 50kOhm min.; Linearity ±10% max.
Modulation Bandwidth (at-3 dB) : 20kHz min. |
| Output Symmetry (Duty Cycle): |
40/60% normal, 45/55% tight at 50% |
| Rise/Fall Time CMOS: |
10.0ns max. Measured between 20% and 80% Vdd |
| Start Up Time: |
5.0 ms (typ.), 10.0 ms (max.) |
| Phase Noise (133.333MHz): |
-76dBc/Hz at 10Hz , -102dBc/Hz at 100Hz,
-114dBc/Hz at 1kHz , -110dBc/Hz at 10kHz, -100dBc/Hz at 10kHz |
| Storage Temperature: |
-40+85°C or -55 to +125°C (package dependent) |
| Reflow Condition: |
260°C max. for 10 sec. |
