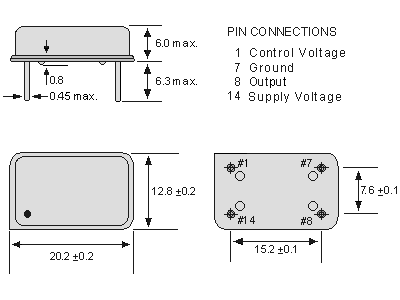

| Specifications |
| Holder Type: |
VCXO12S5.0 5.0V (Voltage code is " 5.0 " ) |
| Frequency Range: |
10.000 MHz to 156.000 MHz |
| Frequency Stability at 25°C: |
±20 to ±100 ppm |
| Operating Temperature Range: |
±20 to ±100 ppm, -20°C to +70°C, -40°C to +85°C
(Inclusive Operating Temp., Supply Voltage, & Load) |
| Frequency Deviation: |
±80 ppm min. |
| Storage Temperature: |
-50°C to +100°C |
| Power Supply Voltage (Vdd): |
+5.0V D.C. ± 10% |
| Initial Freq. Accuracy (at 25 °C): |
Vc= 2.5V ± 0.2V |
| Voltage Control: |
2.5V DC Center / 0.5V to 4.5V Range |
| Maximum Supply Current: |
18mA typ. 10 MHz
34mA typ. 100 MHz
36mA typ. 150 MHz
|
| Input Impedance: |
> 10 k Ohm |
| Load: |
50 Ohm (Internally AC coupied) |
| Modulation Bandwidth (at -3 dB): |
10 kHz min. |
| Output Level: |
Standard: +5.0dBm min. Tolerance: ±1dB
Maximum Power:+13dBm (User to specifity) |
| Harmonics: |
<-30dBc (frequency dependent) |
| Sub-Harmonics: |
None |
| Voltage Control Range: |
0.0V to Vdd with control voltage center at 50% of Vdd |
| Linearity: |
± 10% |
| Phase Noise (typical): |
125.0 MHz as example
-75dBc/Hz at 10Hz; -110dBc/Hz at 100Hz ; -125dBc/Hz at 1kHz ,
-132dBc/Hz at 10kHz ; -128dBc/Hz at 100kHz ; |
| Start Up Time: |
6.0 ms typical |
| Aging: |
< ±5ppm max. / year (max.) |
| Reflow Condition: |
260°C max. for 10 sec. |
