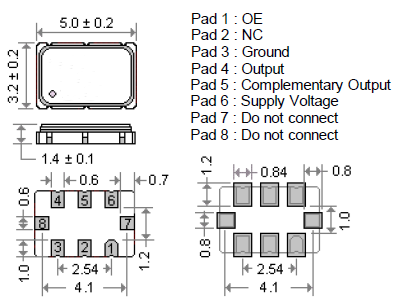

| Specifications |
| Holder Type: |
Clock Oscillator CXP5032PJF3.3 ; 3.3V(Voltage code is "3.3") |
| Frequency Range: |
150 MHz to 2.100.0 MHz |
| Frequency Stability at 25°C: |
±25 ppm / ±50 ppm |
| Operating Temperature Range: |
±25 ppm, -40°C to +85°C / ±50 ppm, -40°C to +85°C |
| Storage Temperature: |
-55°C to +150°C |
| Power Supply Voltage (Vdd): |
+ 3.3V D.C. ± 10% |
| Maximum Supply Current (Differential): |
100mA typ. 120mAmax.
|
| Current with Output Disabled: |
99 mA typical |
| Output Voltage (VOH) (VOL): |
High "1" Vdd-1.165V min, Vdd- 0.8Vmax.
Low "0" Vdd-2.0V min, Vdd- 1.55Vmax.
|
| Output Voltage Swing: |
595 mV min., 930 mV max. |
| Start Up Time: |
5ms typical;10 ms max. |
| Output Symmetry (Duty Cycle): |
50% ± 5%max. (measured at 50% Vdd) |
| Load: |
50 ohms into Vdd -2V or Thevenin equiv.
|
| Output Enable / Disable: |
2.5ms max.; 10µs max.; (20%Vdd<->80%Vdd ) |
| RMS Phase Jitter (12 kHz to 20 MHz): |
156.250 MHz: 159fs; 491.520MHz: 155fs; 644.530MHz: 151fs;
1.480MHz: 147fs; 2GHz: 163fs |
| Aging: |
< ±3ppm max. for the first year; ±2ppm max.per years thereafter |
| Reflow Condition: |
260°C max for 10 sec. |
